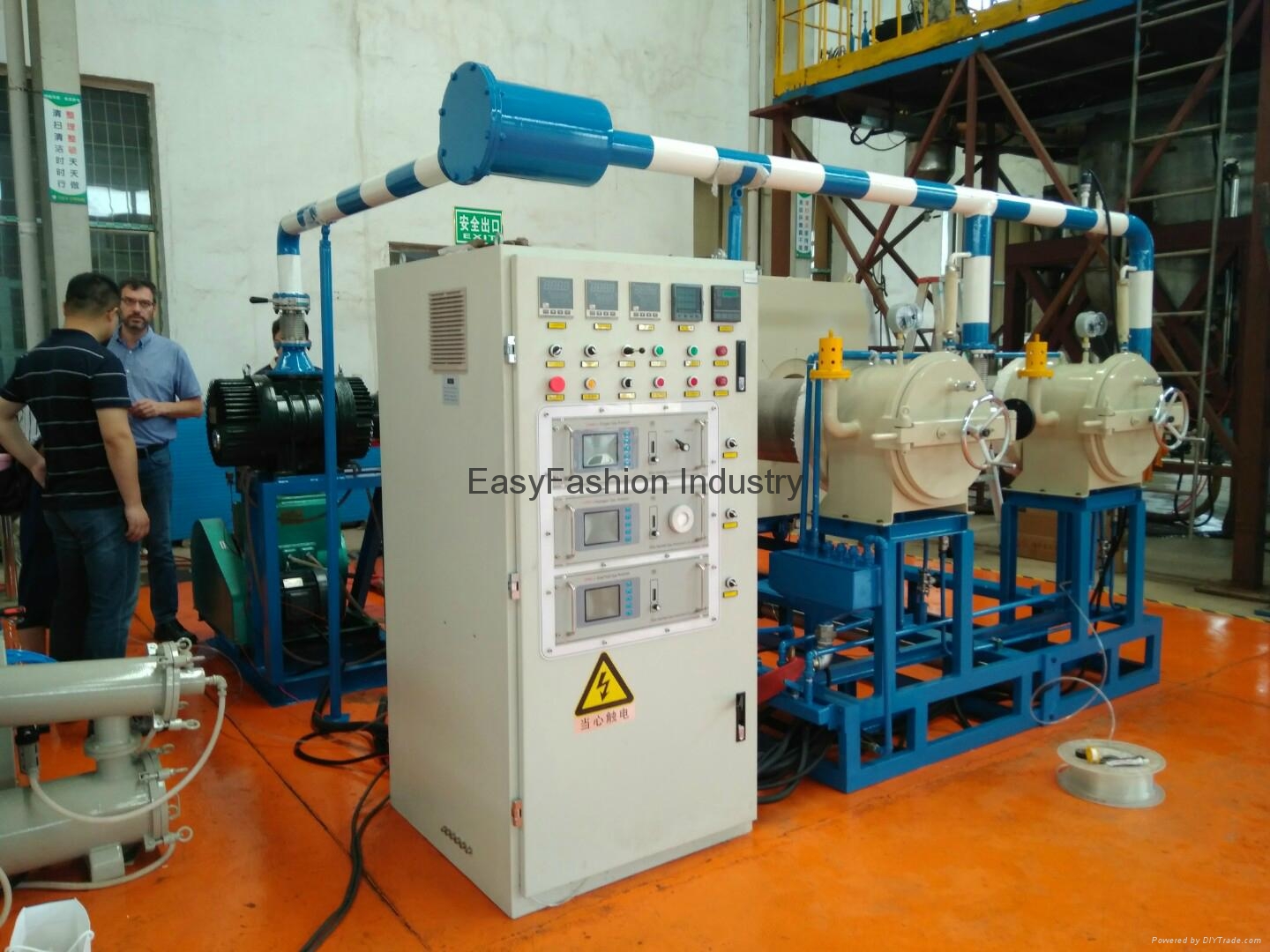

The titanium powder production equipment adopts hydrogenation-dehydrogenation (HDH) process. This specialized powder machine allows titanium sponge to fiercely react with hydrogen at certain temperature. When hydrogen content in titanium sponge is more than 2.3%, brittle titanium hydride is formed. Through heat treatment at 700°C, most interstitial hydrogen is subsequently removed to produce titanium powder.
Note: Together with Plasma Atomization Powder Production Line, it can produce spherical titanium powder.
| Model |
EF-ZKT50 |
EF-ZKT100 |
EF-ZKT200 |
EF-ZKT300 |
EF-ZKT450 |
EF-ZKT600 |
| Nominal feeding capacity (kg) |
50 |
100 |
200 |
300 |
450 |
600 |
| Nominal furnace temperature (°C) |
950 |
950 |
950 |
950 |
950 |
950 |
| Max. furnace temperature (°C) |
1600 |
| Temperature accuracy (°C) |
≤±5 |
| Rated power (kW) |
60 |
75 |
120 |
165 |
200 |
240 |
| Rated voltage of power supply (V) |
380 |
| Rated heating voltage (V) |
Depends on design(External transformer is available in all design. ) |
| Max. vacuum degree (Pa) |
≤6.67 (Empty furnace in cool environment) |
| Pressure rising rate (Pa/24h) |
≤50 |
Working area dimension
(W× H×L) (mm) |
300×300×400 |
300×300×500 |
450×400×670 |
450×400×850 |
500×500×1000 |
600×600×1300 |
| Temperature controlling system |
Shimaden programmable controller |
| Vacuum system |
Rotary vane vacuum pump + Roots vacuum pump |
|
|
|
